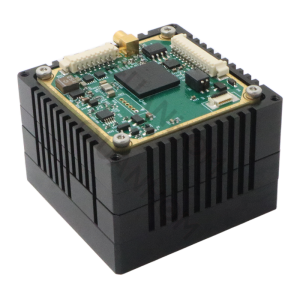

Mini Infrared Thermal Camera Module丨640*512 12μm
- Model
- ITH6412Mini
Item specifics
- Detector Type
- Uncooled focal plane
- Pixel Pitch
- 12μm
- Resolution
- 640x512
- Size
- 24x 24x 35mm
Review
Description
- Specifications
- Download file
- FAQ
- Video
- Applications
Specifications
Detctor Parameters |
|||
Detector Type | Uncooled | ||
|
Resolution
|
640*512
|
||
|
Pixel Pitch
|
12μm
|
||
|
Wavelength
|
8-14μm
|
||
Frame Rate | 50Hz | ||
NETD | < 35mk( @25℃, F#=1.0) | ||
Weight | ≤22g | ||
Operating Temperature | -40℃ to +70℃ | ||
Storage Temperature | -45℃ to +85℃ | ||
Operating Humidity | < 90% RH | ||
Image Parameters |
|||
|
Background correction
|
||
|
|
||
|
Brightness/ Contrast adjustment
|
|
||
Pseudo Colour Palette | Black hot, White-hot, Red hot, Fusion | ||
AGC model | Automatic | ||
DPC | √ | ||
DDE | √ | ||
3D DNR | √ | ||
Digital Zoom | x1, x2, x4, x8 | ||
Digital Video Output | 8-bit BT.656 / 14-bit RAW + YUV (ITH6412Mini-D) | ||
Analog Video Output | CVBS (ITH6412Mini-S) | ||
Boot Time | < 5S | ||
Interface |
|||
|
Communication interface
|
UART interface
|
||
OLED driver | 0.39" OLED 1024x768 ( ITH6212Mini-S) | ||
Battery interface | Support( spare) | ||
Others |
|||
|
Power
|
DC2.5V-DC5.5V
|
||
|
Power consumption
|
< 1W
|
||
|
Vibration shock grade
|
750g/ 1ms
|
||
Size | 24x 24x 35 mm | ||
Download document
|
file name
|
type |
download
|
||
|
Infrared Thermal Camera Module丨ITH6412Mini 640*512 12μm
|
PDF |
|
||
FAQ
- What is the difference between ITH6412Mini and other Infrared Thermal Camera module?
1. ITH6412Mini supports OLED drivers.
2. It supports external keyboards.
3. It supports menu options.
4. Have no auto focus function.
- What are the main application scenarios of this thermal Image Core? Which lenses can be matched?
1. The Infrared thermal imaging camera of ITH6412Mini is mainly used for outdoor observation machines, UAV, etc.
2. Many models of lenses can match this module,such as athermalized infrared lenses and manual infrared lenses.
