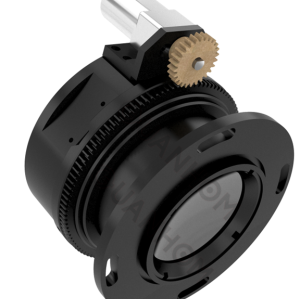

Motorized Focus LWIR Lens 300mm f/1.3
Motorized Focus LWIR Lens 300mm f/1.3
Model
GLE30013KD

Item specifics

Motorized Focus IR Lens
300mm f/1.3
Applications
Security and Surveillance
Interface
Thread Flange

Review

Description

  • Specifications
  • Download file
  • FAQ
  • Video
  • Applications
Specifications
HFOV
160x120
320x240
336x256
384x288
640x480
640x512
1024x768
1280x1024
25μm
0.8°
1.5°
1.6°
1.8°
3.1°
/
/
/
17μm
0.5°
1.0°
1.1°
1.2°
2.1°
2.1°
3.3°
/
12μm
0.4°
0.7°
0.8°
0.9°
1.5°
1.5°
2.2°
2.9°

Optical

Focal Length[mm]
300
F/#
1.3
Focus Range
30m-Infinity
Wavelength
8-12μm
Format
Φ20

Mechanical

Focus Mechanism
Motorized
Dimensions [mm]
Φ352.83x245
Weight
<4540g

Electrical & Communications

Power Input
DC 6-12V
Communications
NA

Environmental

Operating Temperature
-40℃ to +60
Storage Temperature
-50℃ to +80
External Coating
DLC
Front Element Sealing
IP67
Download document
FAQ
- Why the lens autofocus is not clear?

There are many reasons why the lens autofocus is not clear, the main reasons are as follows which can be checked one by one:

1. During the focusing process, there is a large moving target in the lens screen (occupying more than 1/3 of the picture), can be refocused;

2.If the lens is used for a long time, the gear, CAM and other transmission parts wear and tear, resulting in unclear focus, the module or control board parameters can be adjusted to make the focus clear again;

3. Hardware problems, such as potentiometer does not work, replace the hardware that does not work.

- Why can not the lens control board or module connect to the computer?

There are many reasons why the lens control board and the computer cannot be connected, the main reasons are as follows which can be checked one by one:

1. Replace the USB port, which may be incompatible with the data cable;

2.Replace the data cable,maybe the data cable is not compatible with the computer or the cable data is wrongly selected;

3. Confirm the wiring of the module or the control board, maybe the wiring is loose;

4.Module or control board hardware problem, replace the hardware.
